BAG PORT is a straight through adapter used to introduce a 2nd pathway into or out of the system.
I've used is on my "Science Project" to introduce N2O via Rebreather bag (to warm the gas) into my system and also another to add a Bubbler bottle for Mistresses Champagne.
The adapter id always open between LEFT and RIGHT ports with the BOTTOM port switchable/variable.
Notable dimensions are: (approx ±1mm)
Width = 73mm
Height = 45mm (excluding "switch")
MALE Ports = 22.8-23.5mm (taper)
FEMALE Port = 22.9-22.5mm (internal taper)
Weight is around 135g
Images show:

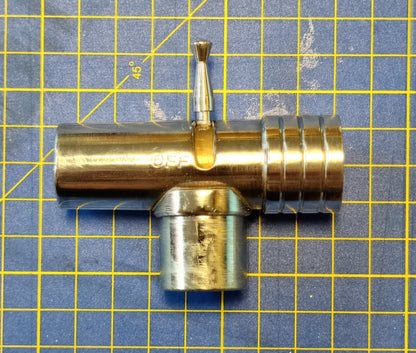

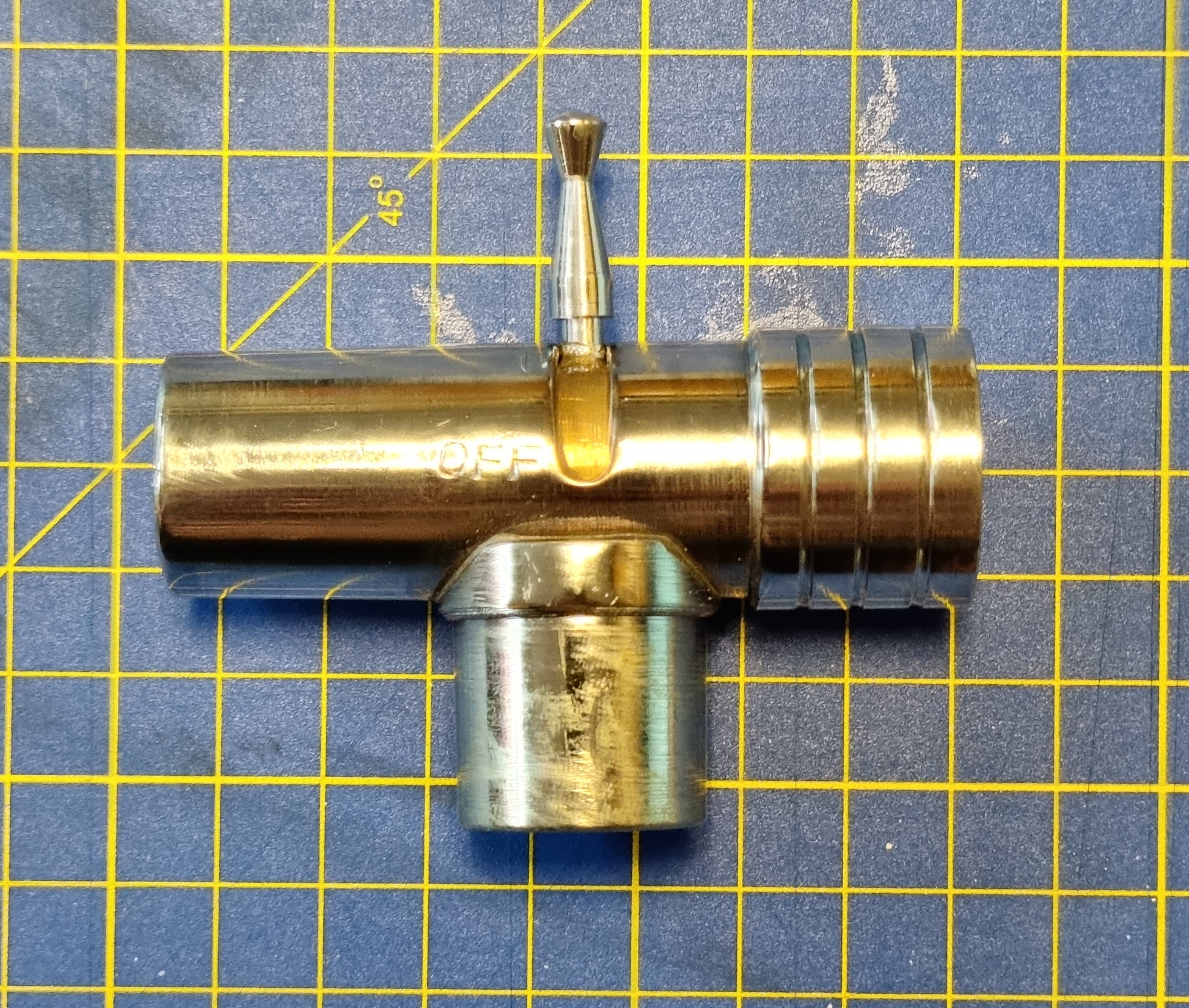

Bag Port (unmounted)

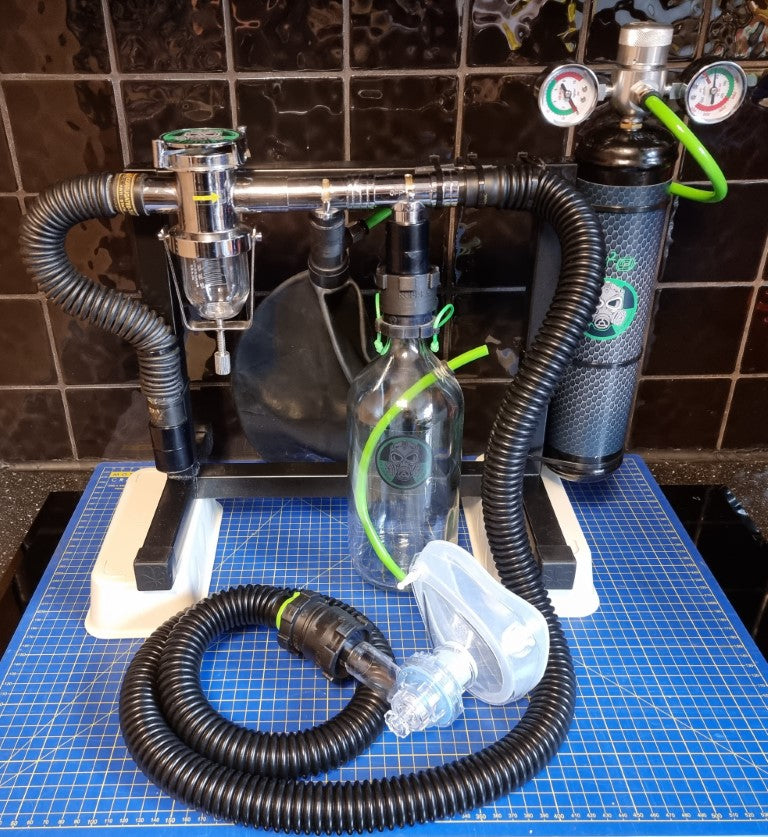

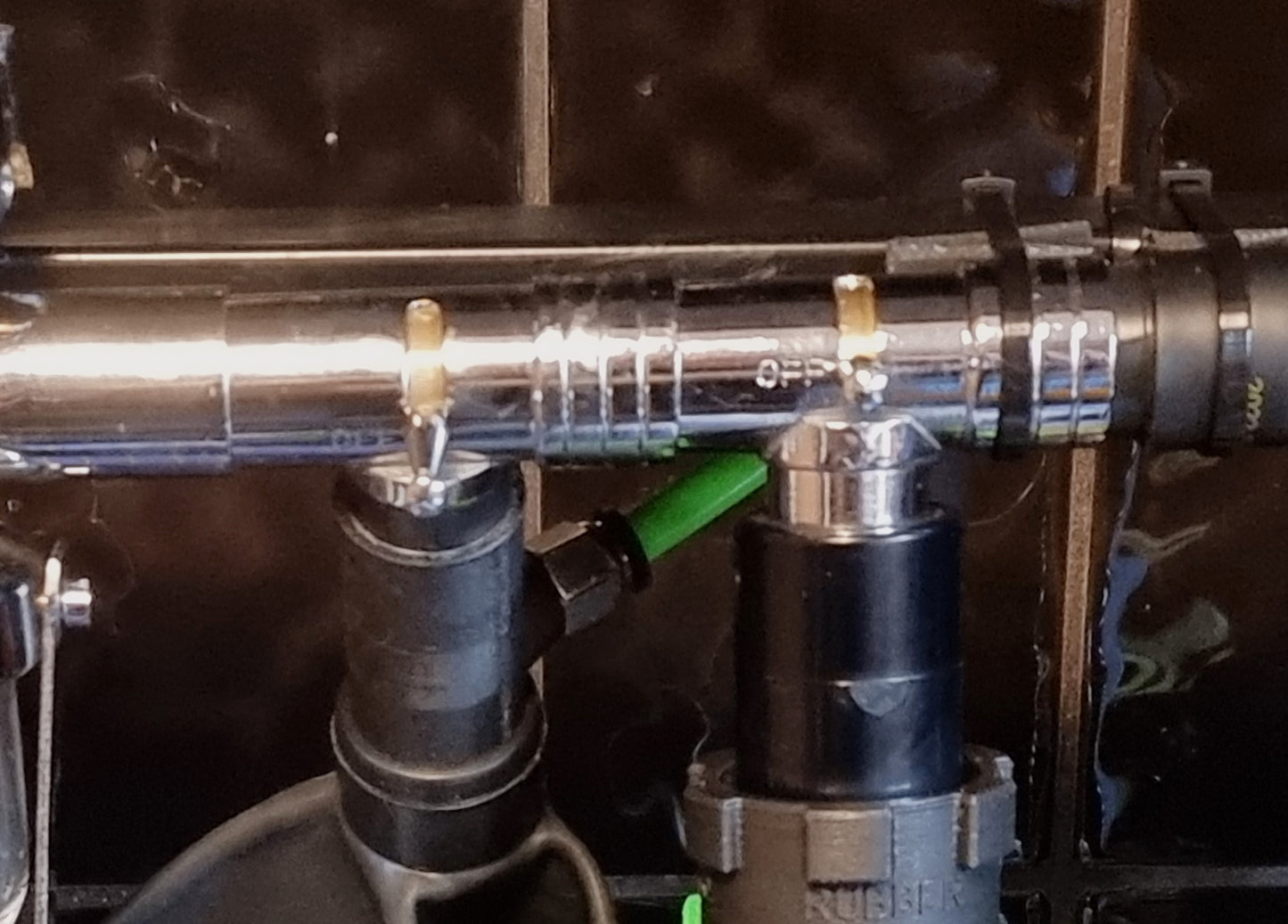

Bag Ports (two mounted used in my "Science Project")
